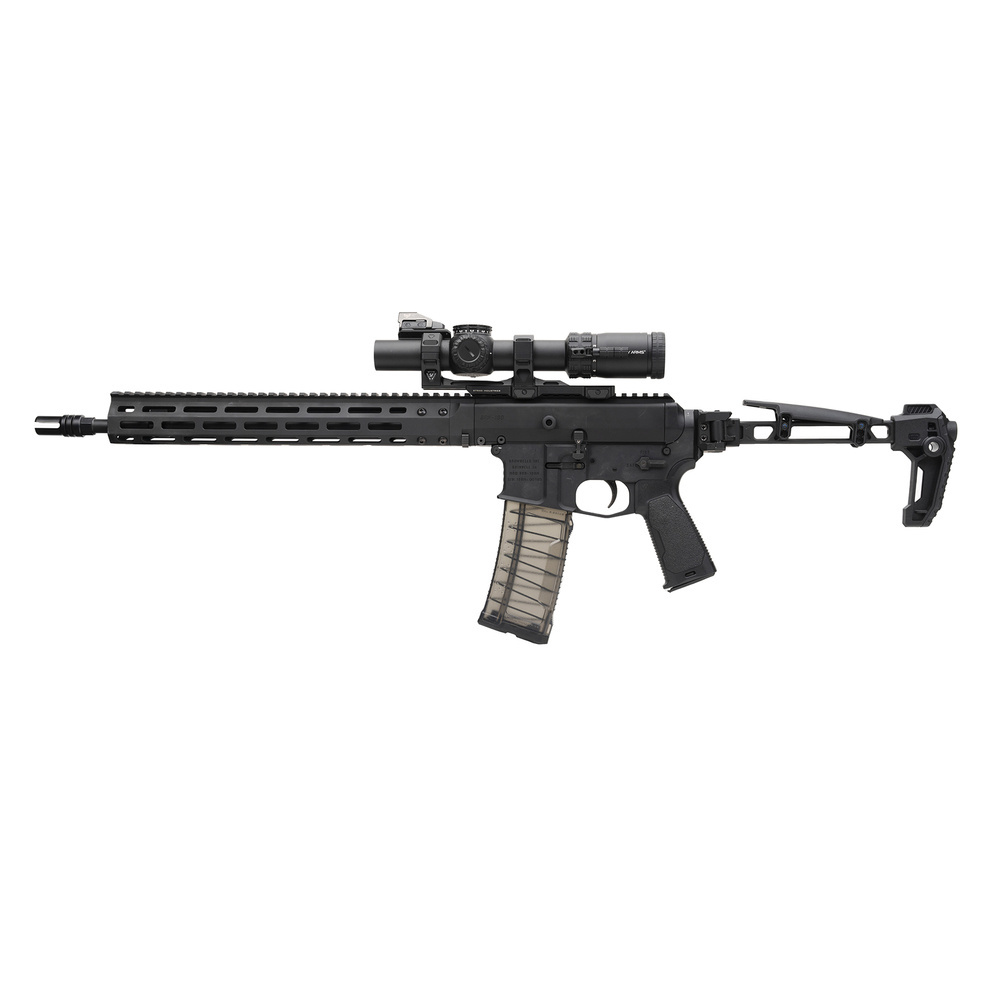

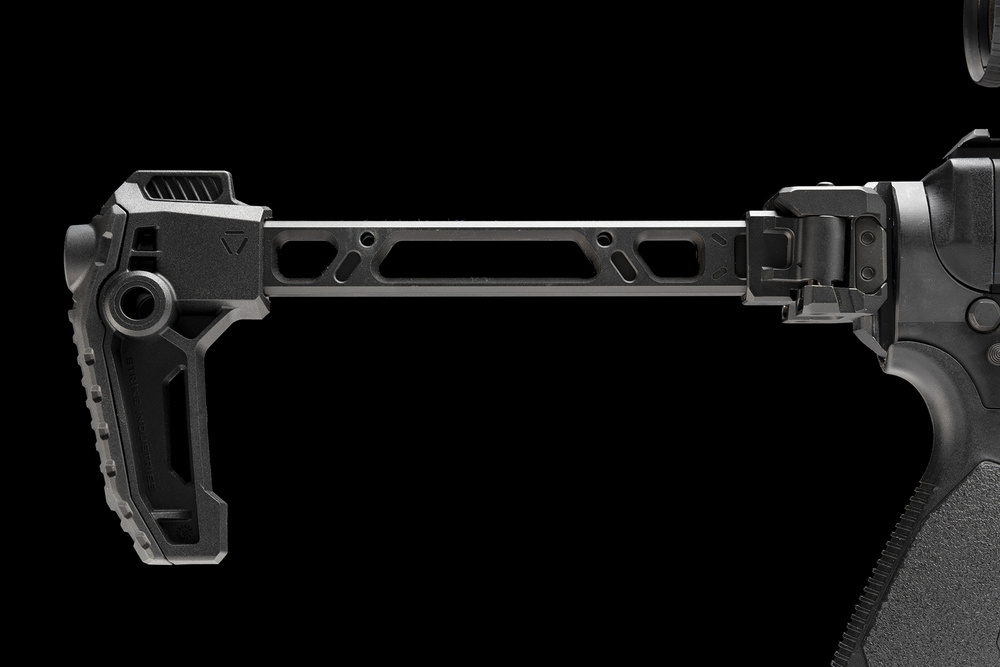

The Strike Folding Adapter double-sided stock is a unique system based on Picatinny mounting. Thanks to its unique design, it can be folded to the left or right side or detached very quickly, without modifying the mounting design. The stock locks stably in both open and closed forms, so you can freely use the weapon in any configuration.

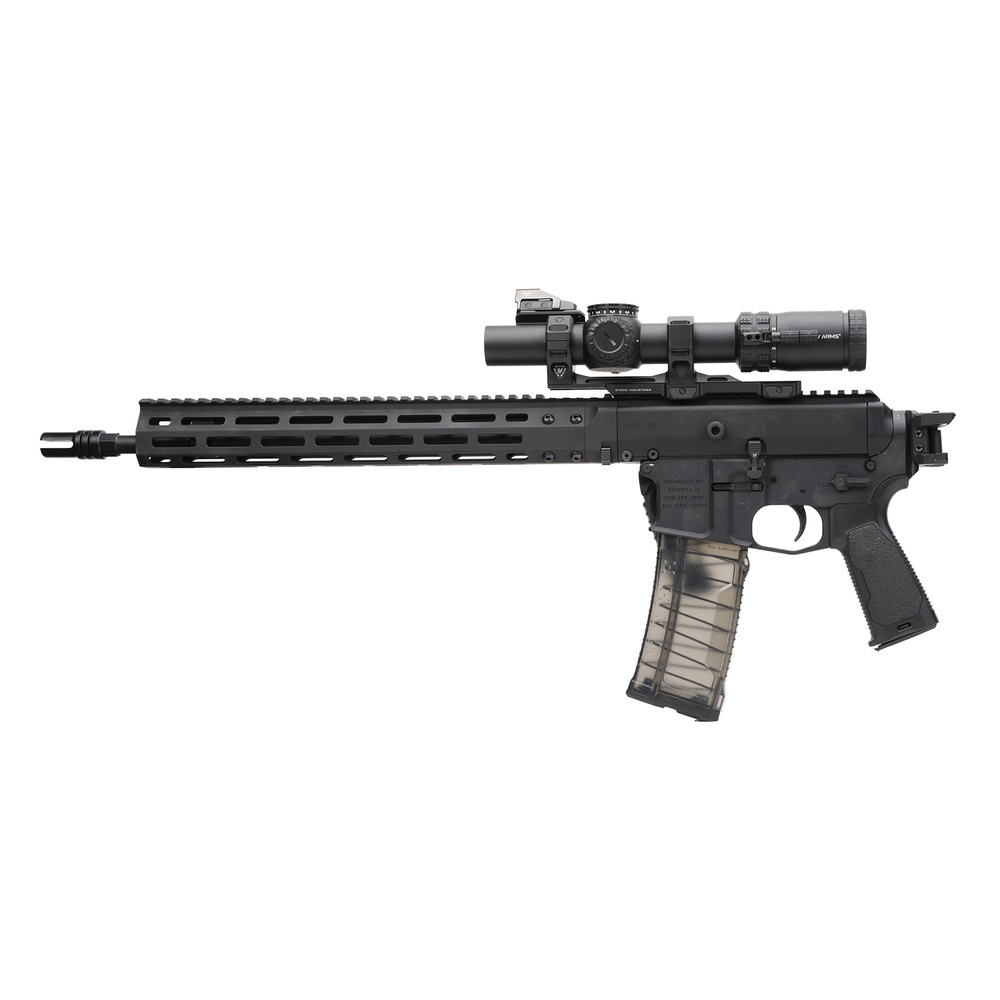

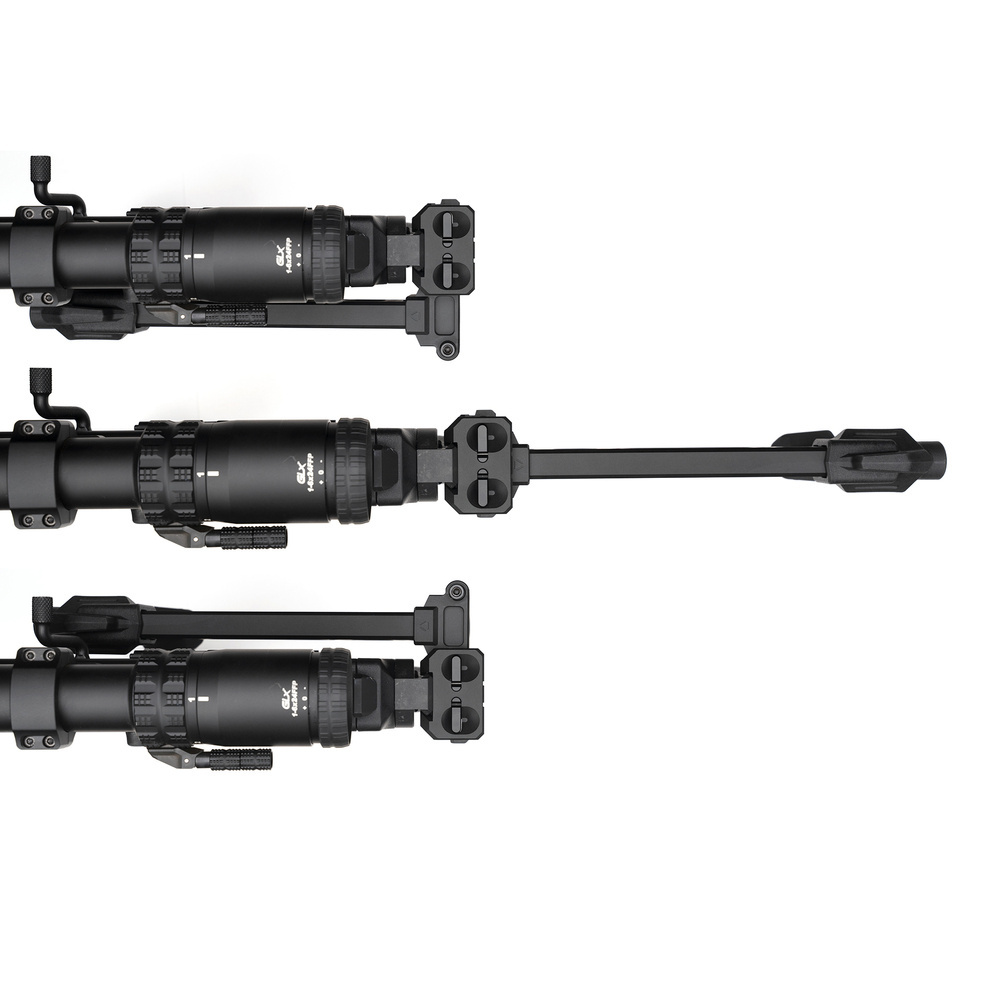

The Strike Folding Adapter is a patented system that is the first on the market to offer an intuitive two-sided mechanism for folding the buttstock for a Picatinny mount. This innovative model allows folding to the left or right at any time, without rotating the mount. It gives the user complete freedom of choice. The stock stays securely in place after folding, remaining stable when conducting fire.

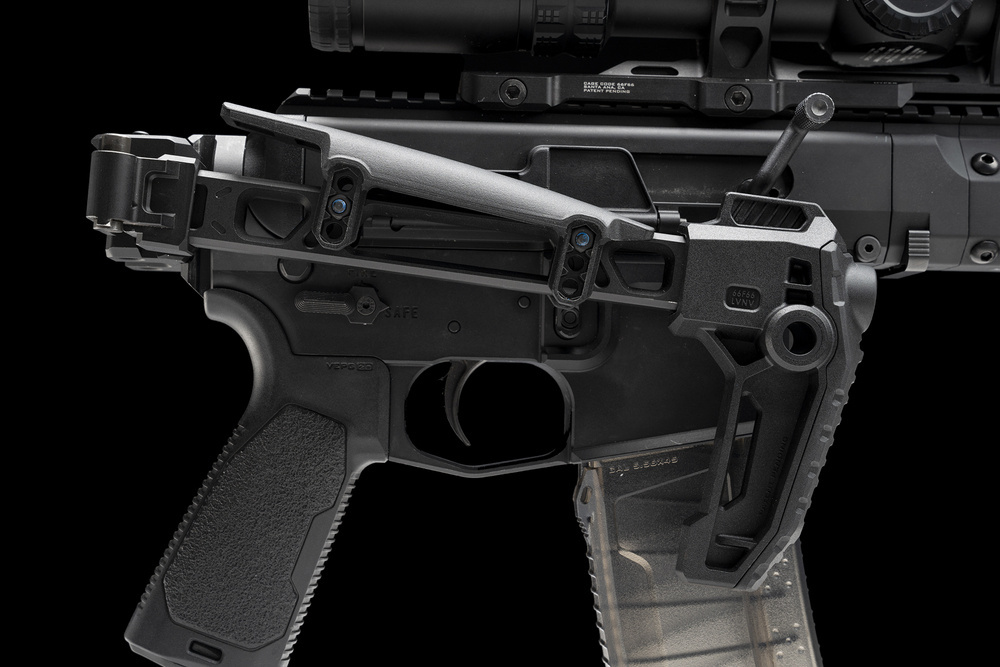

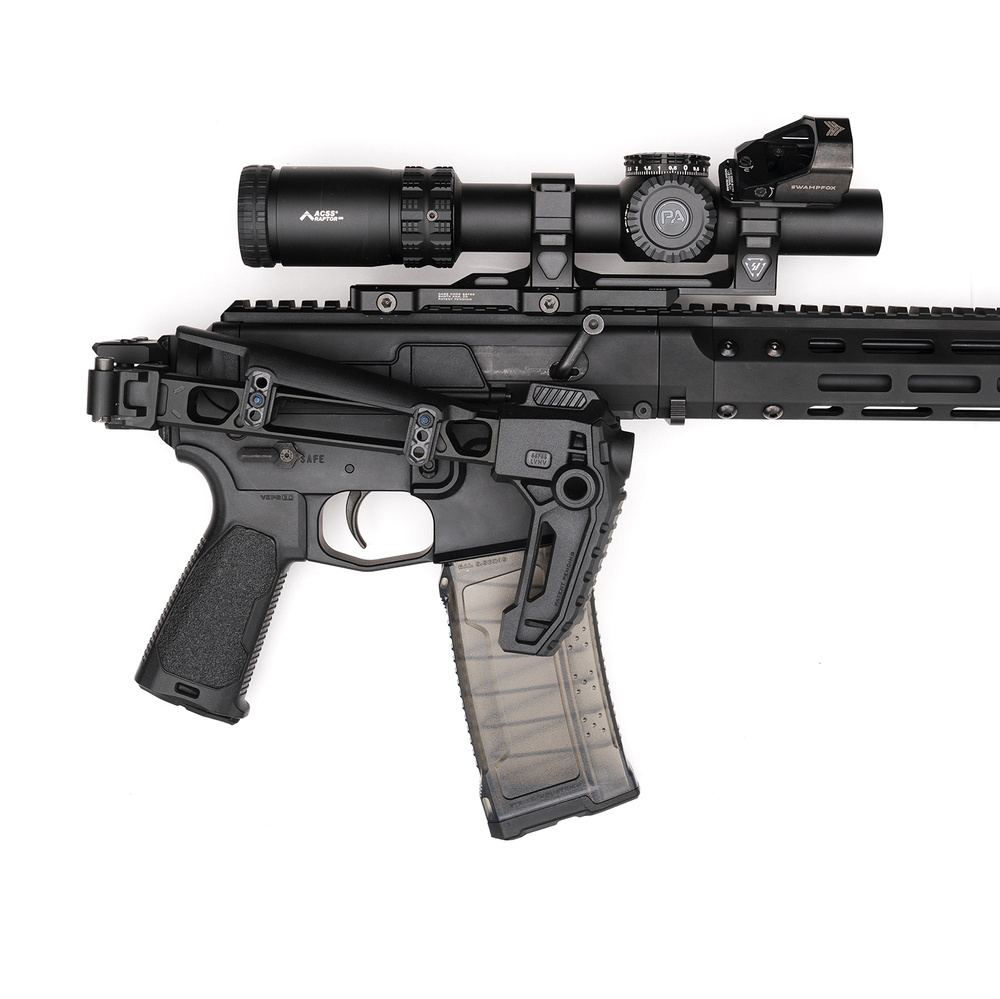

For quick unfolding, it is enough to lift it slightly in the hinge area. The buttstock is specially designed with a 3-degree downward tilt angle, which prevents interference with the brass ejection port when folded to the right side.

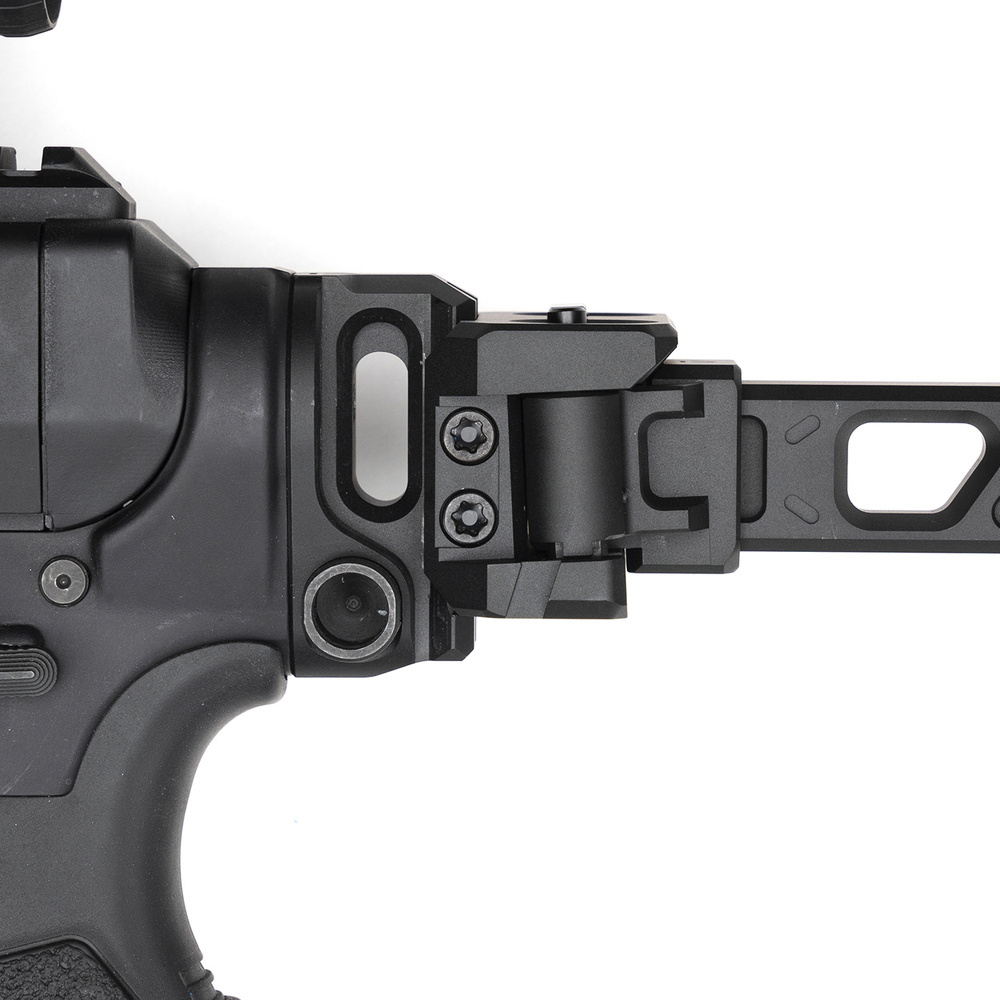

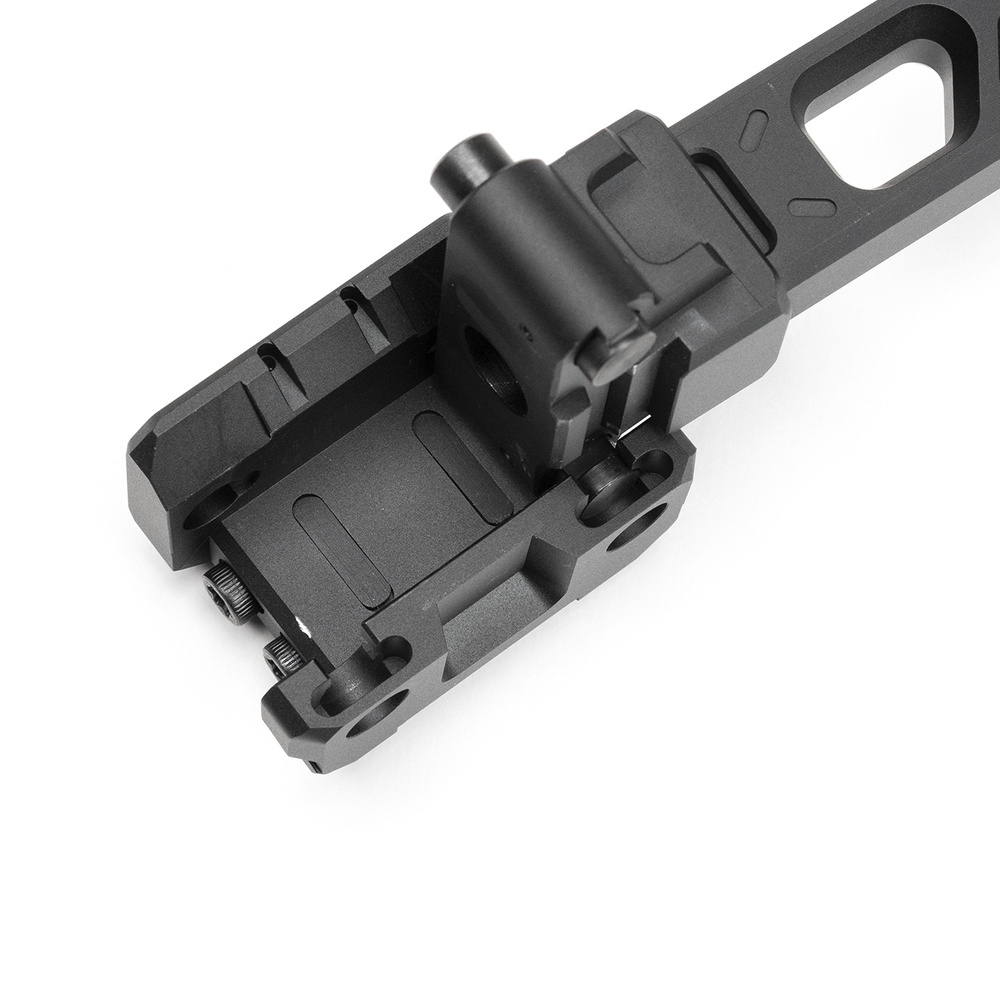

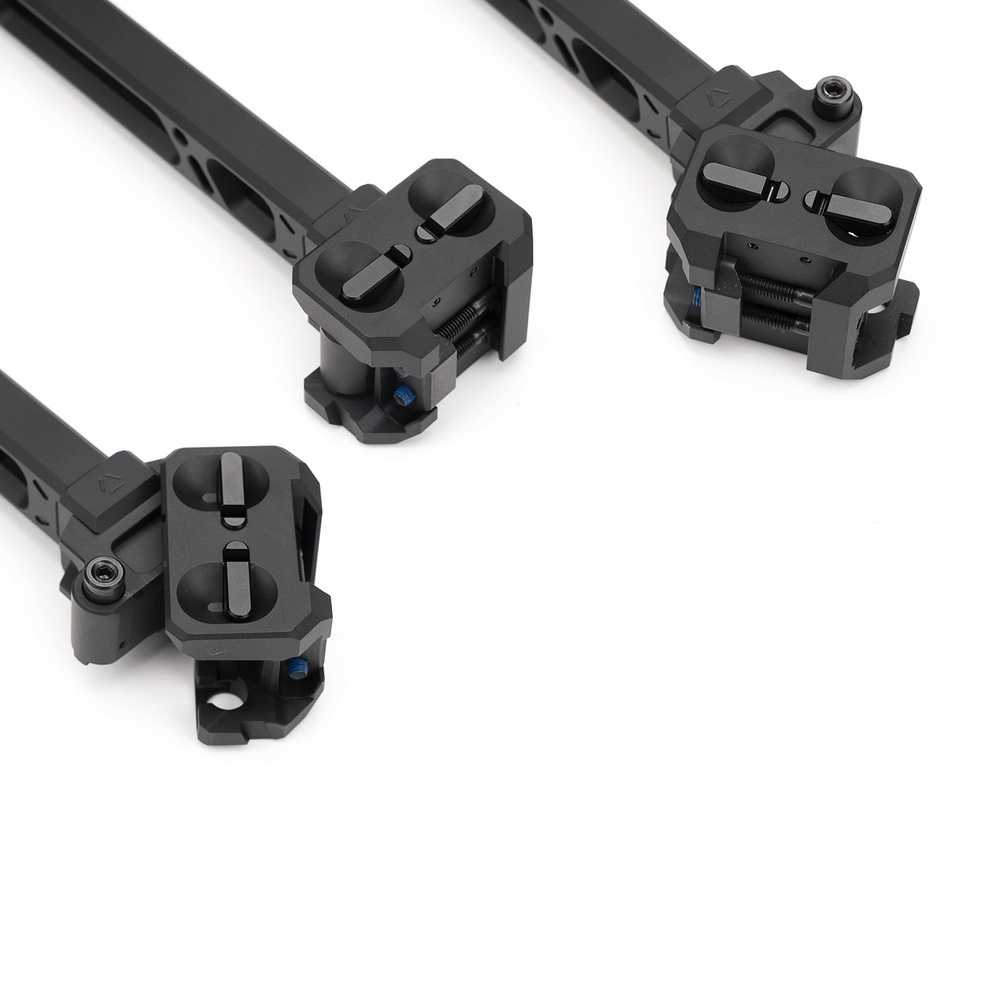

The stock can be instantly detached by pressing both locking buttons simultaneously, thereby releasing the hinges. The risk of excessive play at the hinges is prevented by the included oblong rubber pads of various thicknesses. They should be glued into specially milled recesses located on the inside of the hinge.

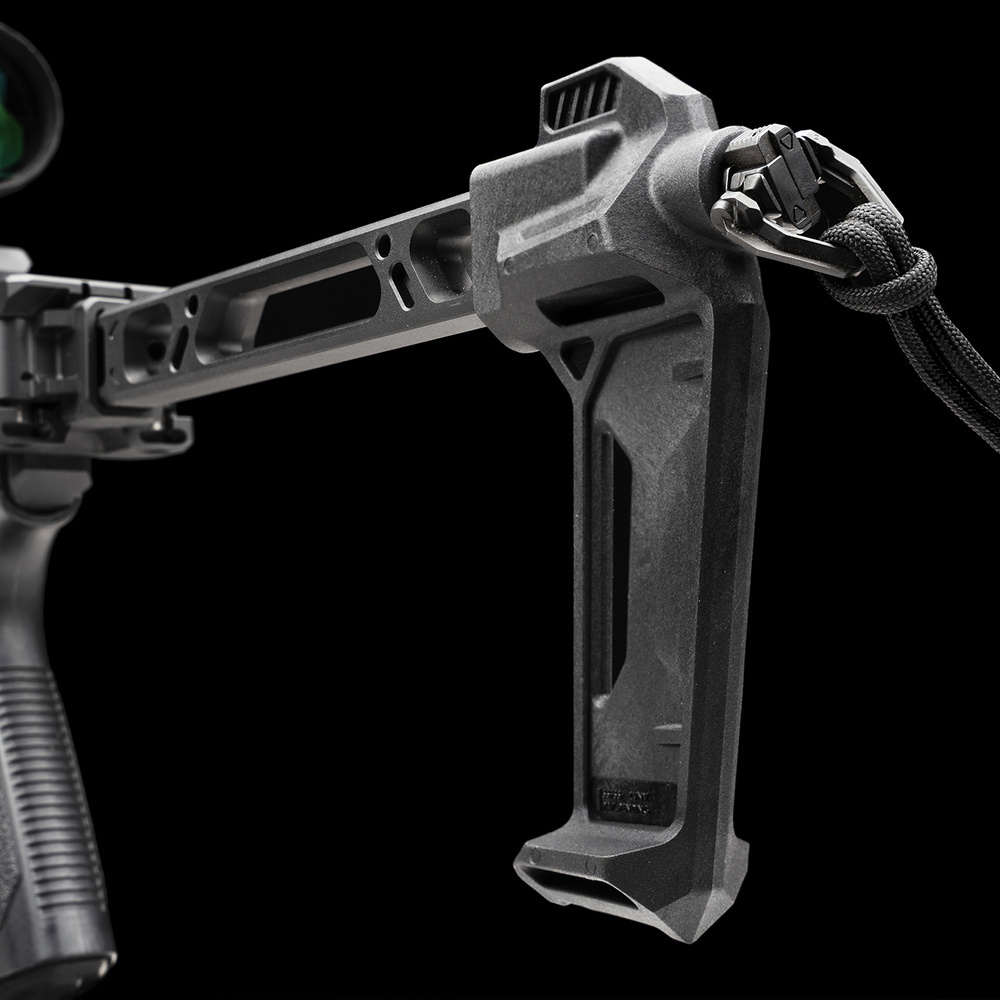

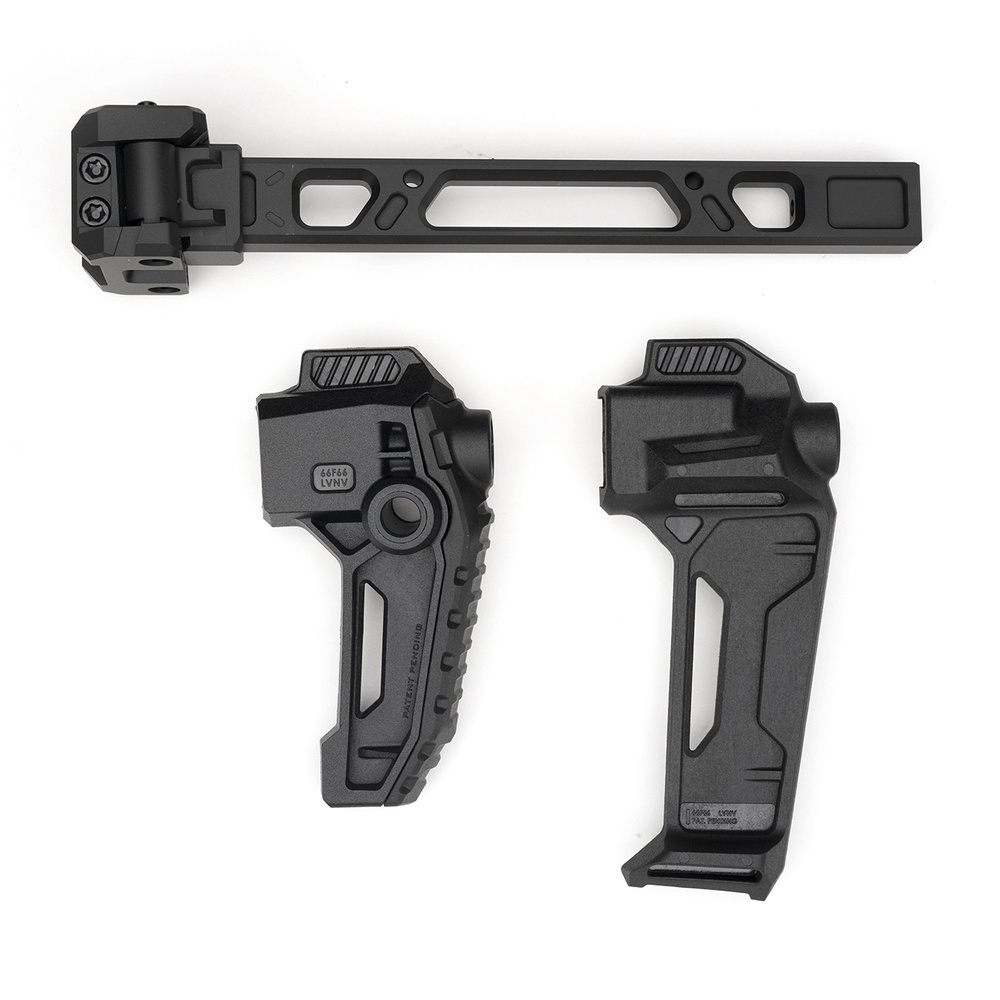

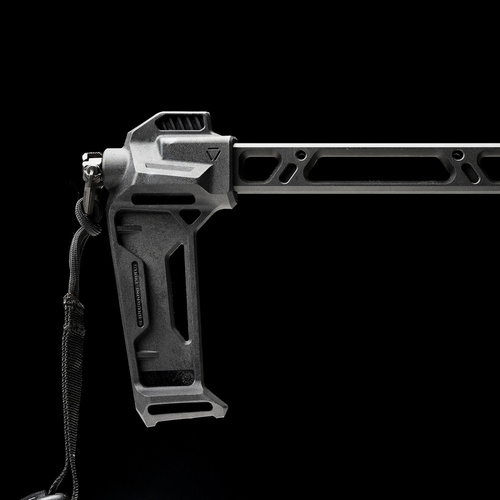

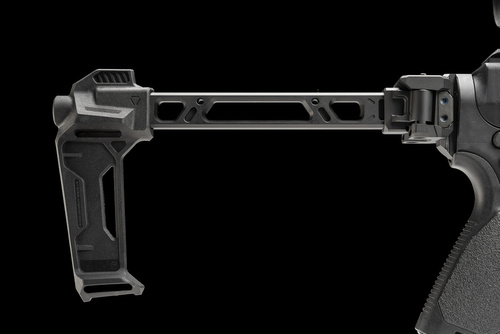

The kit comes with two interchangeable rear ends. The first is a minimalist stabilizer type and the second is an SBR type stock equipped with a rubber buttplate. The rear ends are mounted through a Torx-type screw, accessible through the rear QD sockets, for removal of which the included wrench is used, also designed for rail mounting screws.

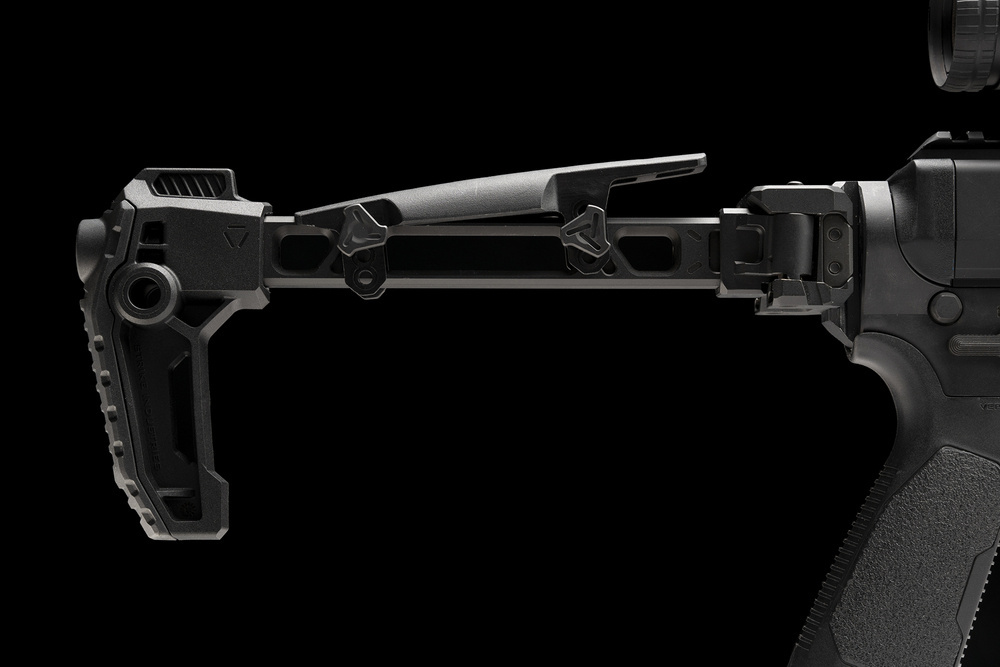

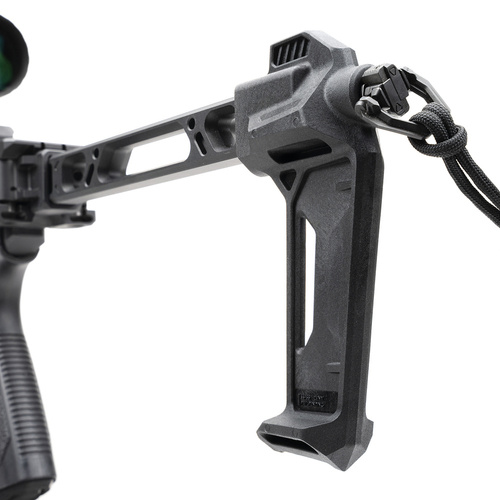

The frame and rail mount are made of 6061-T6 aluminum, the hinges, buttons and screws are made of steel, and the rear ends are made of polymer. Thanks to this design, the stock is lightweight, yet extremely durable. The buttstock is designed to work with a wide range of accessories, such as optional cheek pads or tactical slings hooked to the QD port. The stabilizer has one socket on the rear, the SBR stock has 3: on the rear and on both sides.
Modern materials and excellent technical solutions make the Strike Folding Adapter a unique accessory for anyone looking for a modular folding buttstock weighing less than 300 grams.
Features:- Skeletonized folding stock for rail mounting

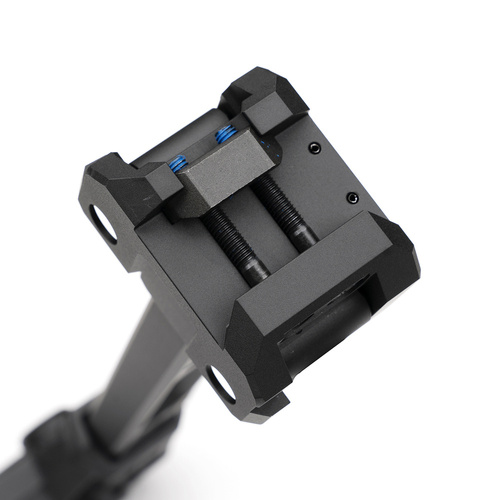

- Mounts directly to a 1913 Picatinny rail with 2 Torx screws

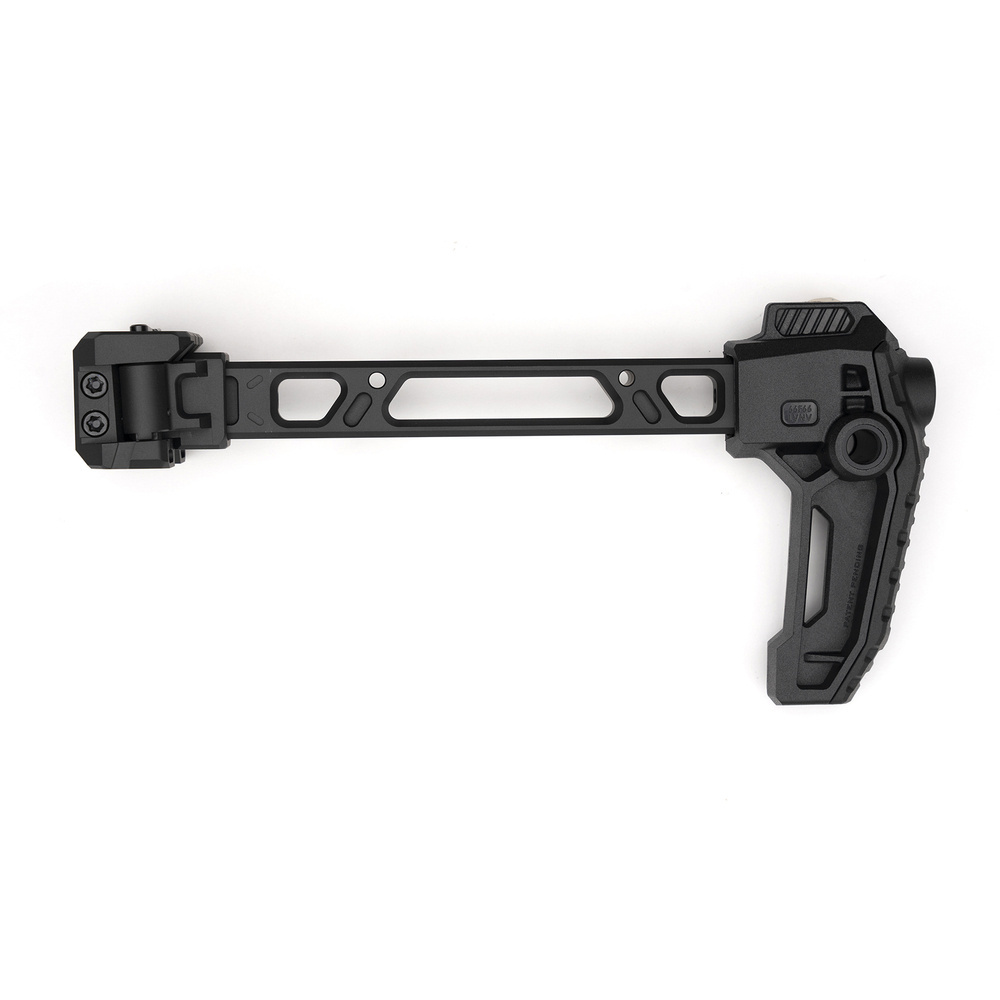

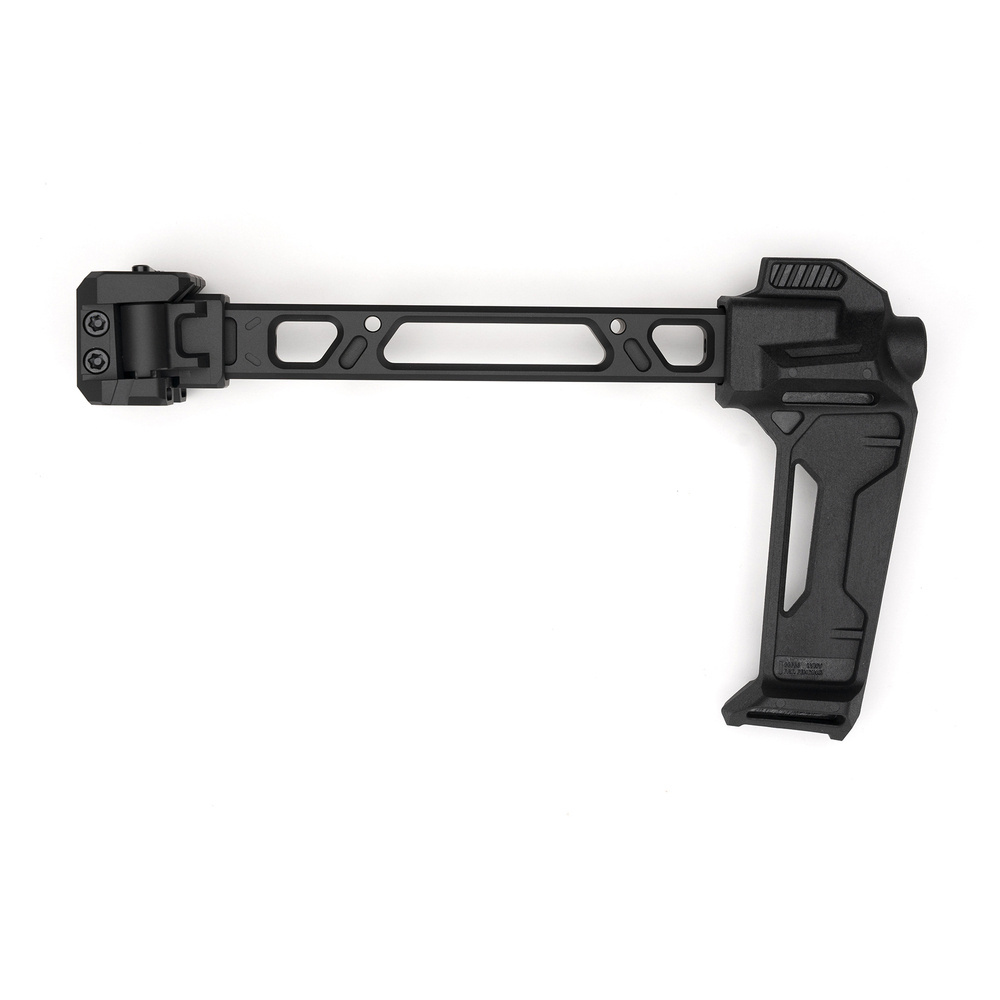

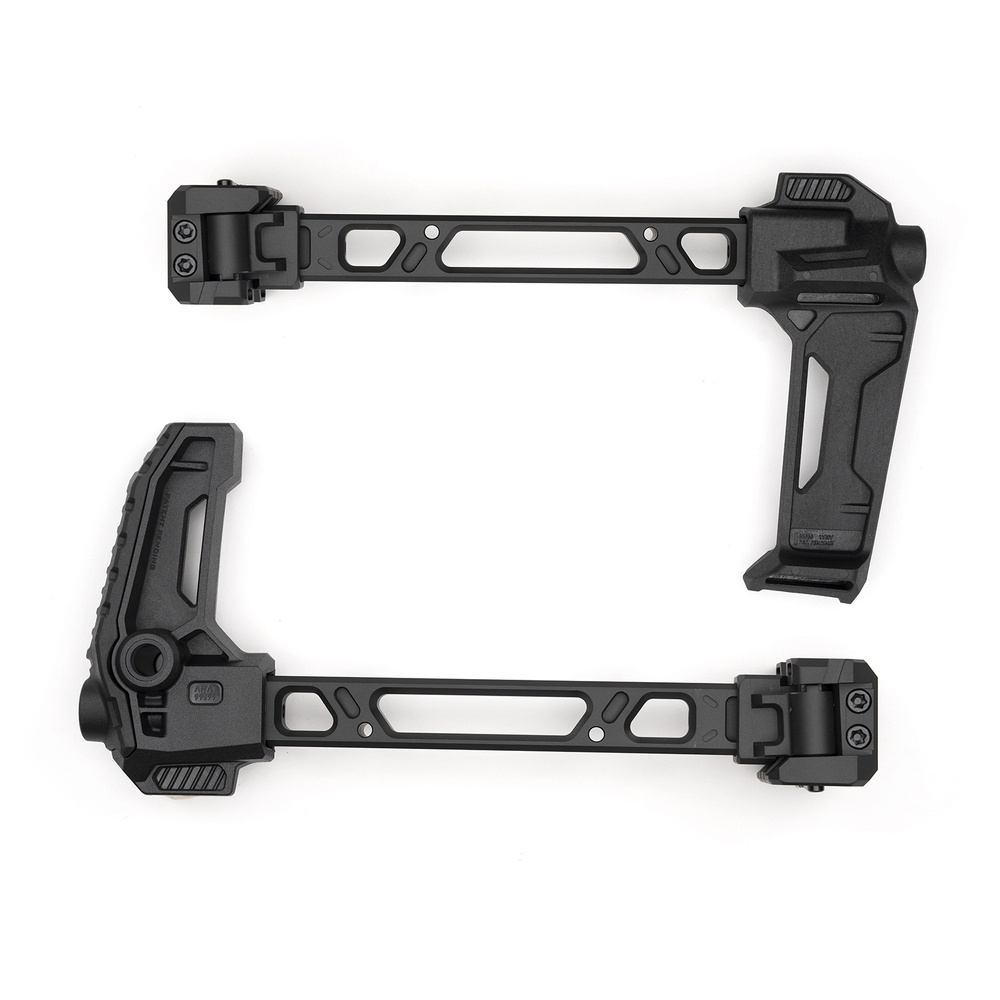

- Pre-assembled as stabilizer and includes a separate SBR buttstock
- Rear ends mounted with a single Torx screw
- Patented, first Picatinny adapter on the market with double-sided folding capability and intuitive operation

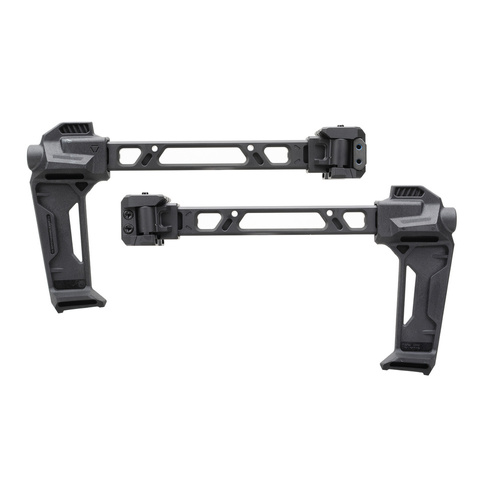

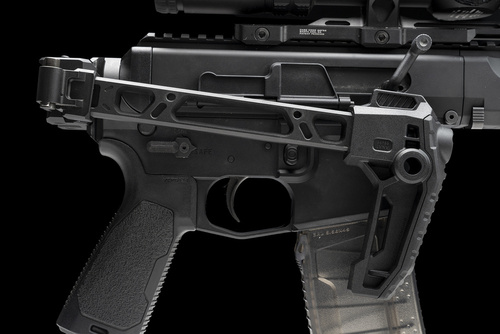

- Folds left or right at any time without rotating the hinge

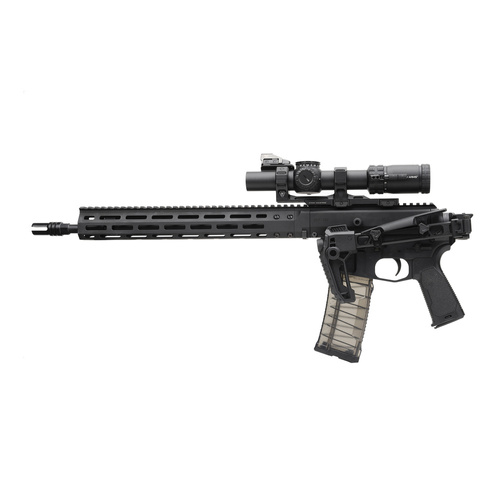

- Locks into the folded position
- Comes with rubber pads of various thicknesses to adjust the tension of the hinge in the unfolded position
- Designed for them are special recesses located on the inside of the mount for the hinge
- To open, it is enough to raise the buttstock near the hinge, and to lock it down

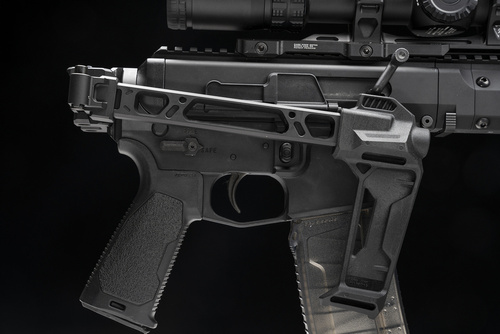

- A 3-degree downward angle revealing the brass ejection port in the folded position to the right side

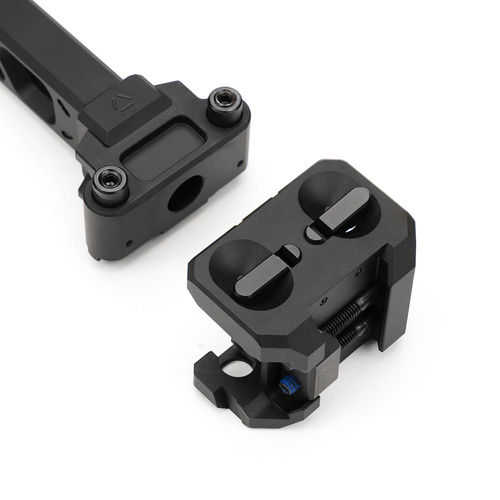

- Pressing the buttons at the same time allows quick disassembly of the stock

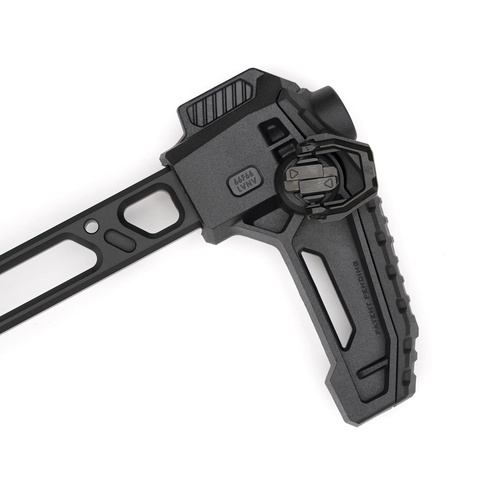

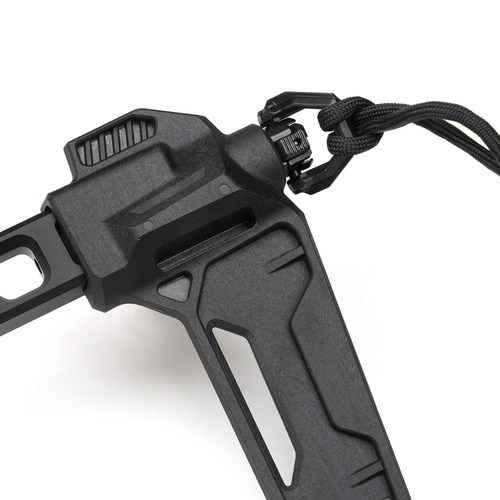

- Single rear QD socket on stabilizer and three sockets on SBR buttstock
- Non-slip rubber buttplate on the SBR stock
- Steel hinge; its mounting, rails mount and frame made of 6061-T6 aluminum
- Robust, modular and lightweight
- Regular maintenance of the hinge and lubrication of the button components is required for proper operation
- Suitable Torx wrench included
Technical data | |
---|---|
Compatibility |

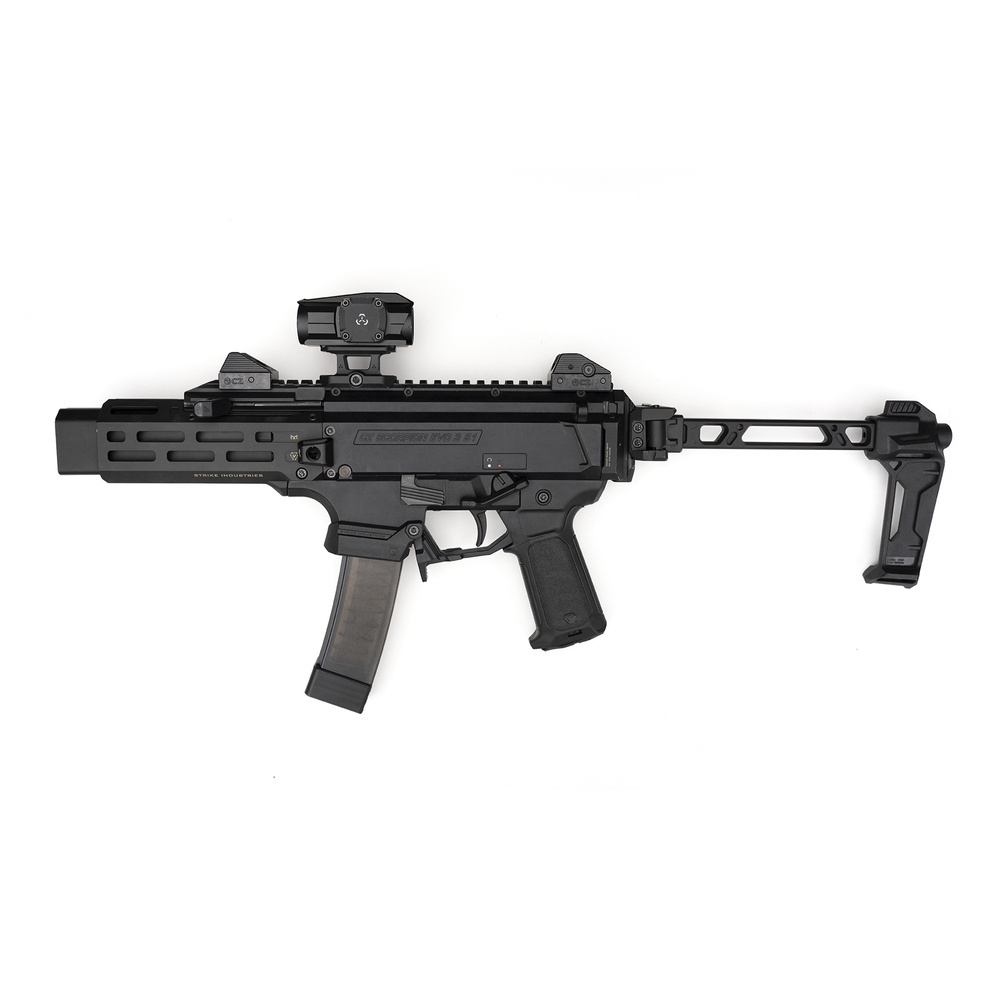

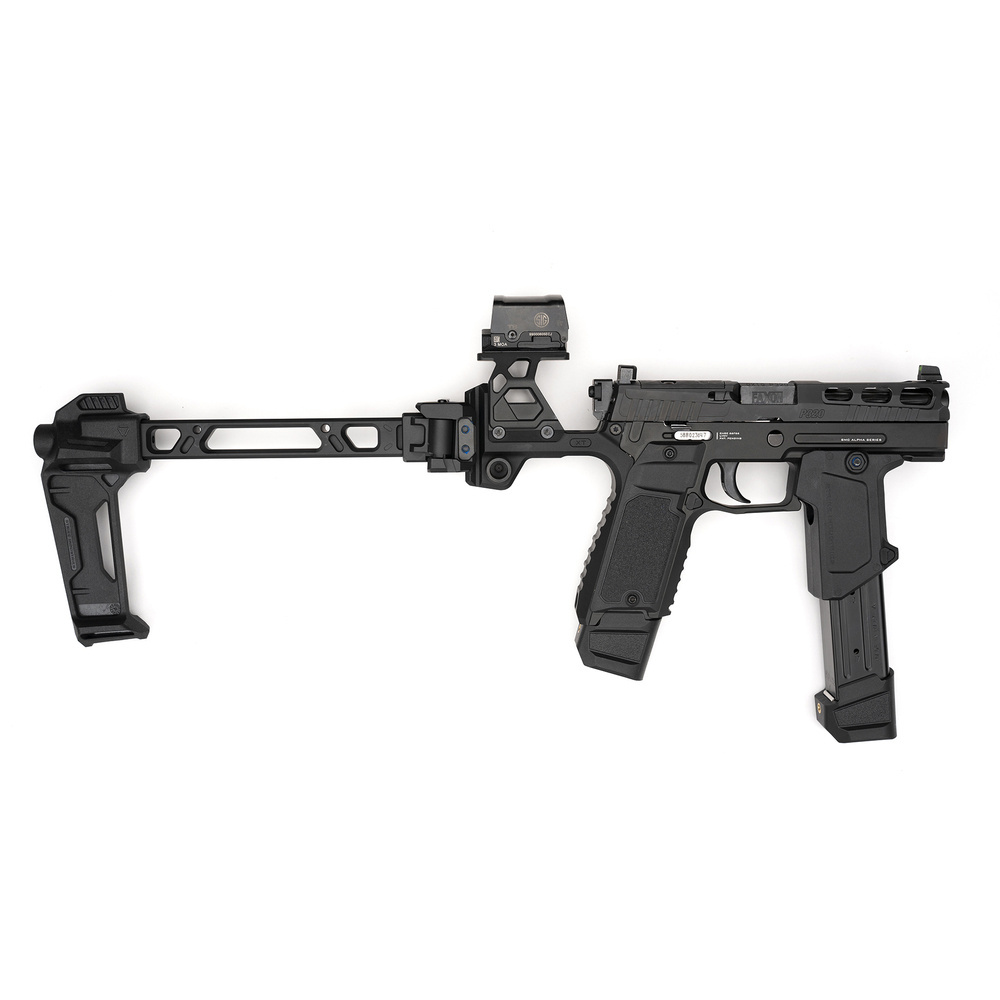

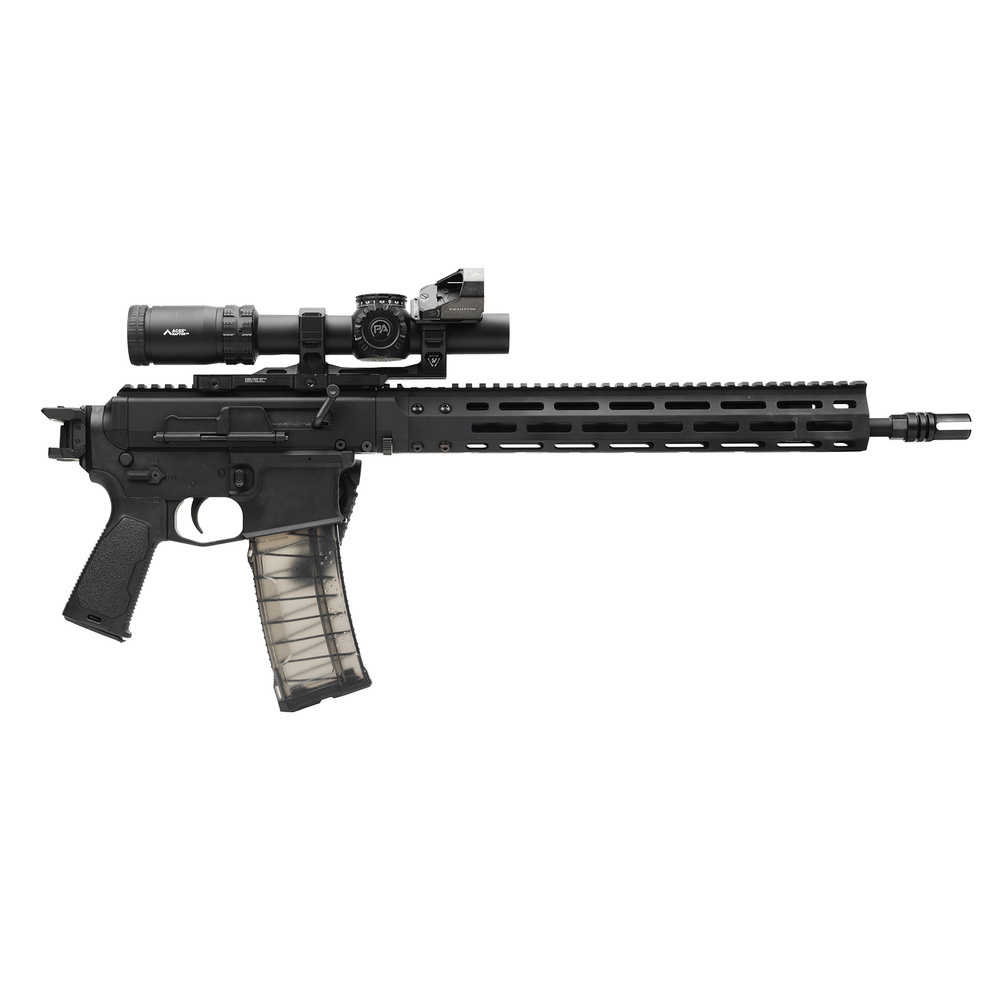

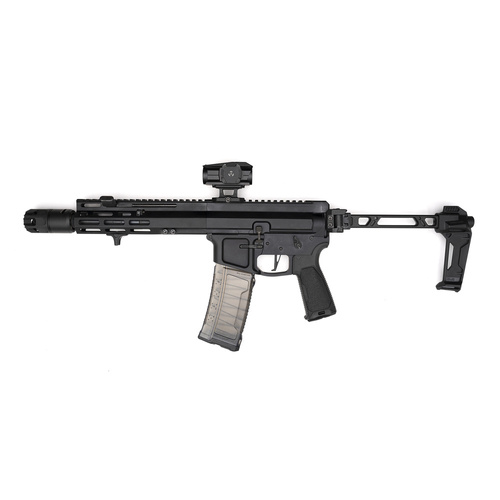

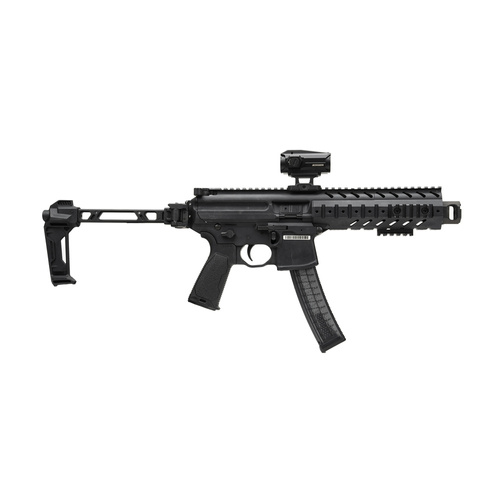

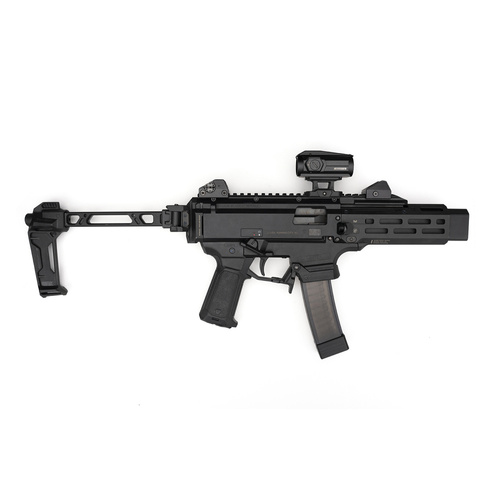

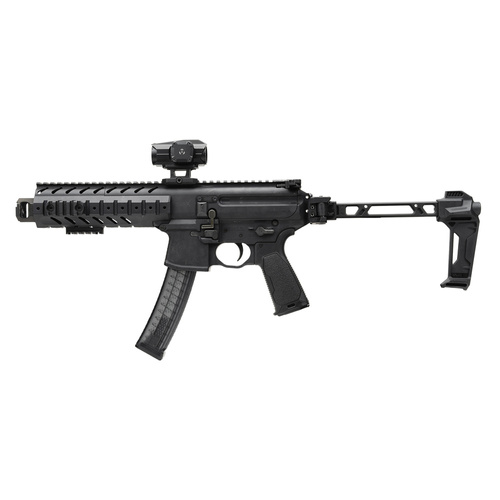

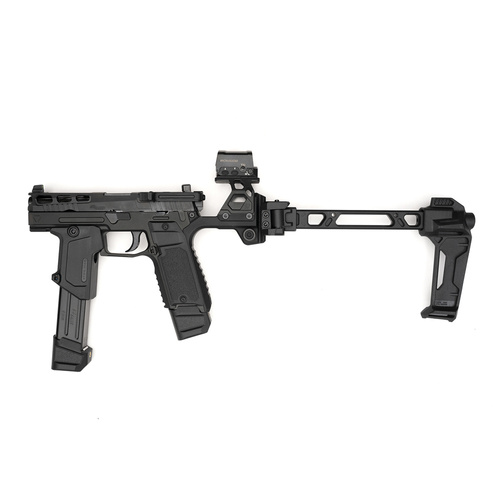

1913 Picatinny rail Strike AR Picatinny Stock Adapter B&T APC9/45 APC223/300 GHM Brownells BRN-180 lower receiver CZ Bren 2 CZ Scorpion EVO pistol version with SI Stock Back Plate adapter Galil ACE Ruger PC Charger SIG SAUER MCX/MPX |
Mounting | Picatinny 1913 |
Material | Aluminum 6061-T6 Polymer Steel |
Overall length |
With stabilizer: 234.,64 mm With SBR stock: 233.14 mm Folded: 26 mm |
Dimensions with stabilizer |
Length: 240.5 mm Width: 53.05 mm Height: 141.95 mm Weight: 272 g |
Dimensions with SBR stock |
Length: 239.5 mm Width: 53.05 mm Height: 115.88 mm Weight: 281 g |
Weight of set | 411 g |
Color | Black |

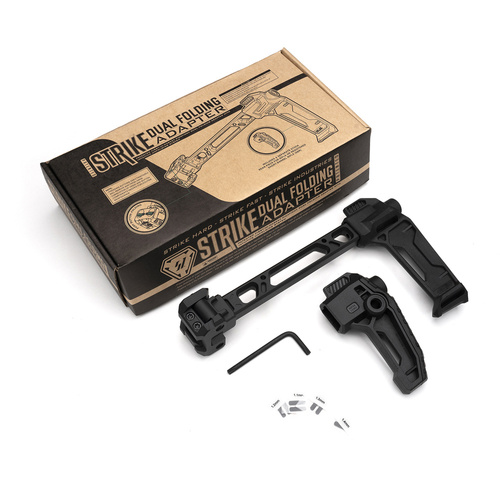

Kit components:
- 1x Strike Folding Adapter in stabilizer configuration
- 1x replacement SBR stock
- 4x Rubber pads of various thicknesses
- 1x Torx T25 wrench
