Strike Industries - Variable Optic Mount for Red Dot Sights - Picatinny - Aluminum - Black - SI-T1-VOM-BK

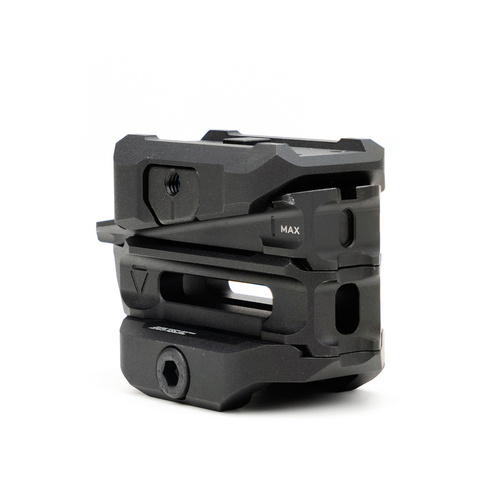

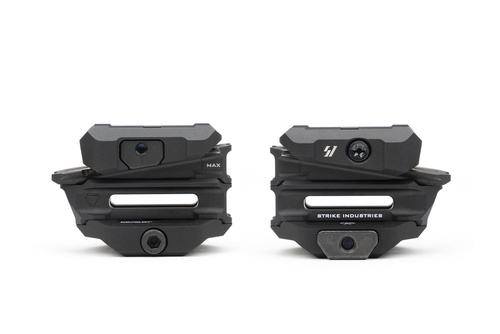

Mount for red dot sights, with variable height adjustment. Designed to be mounted on a Picatinny rail. Equipped with the very popular Aimpoint® Micro Standard footprint. The adjustment range is from 1/3 co-witness to 4.9 cm. Thanks to the notches on the rail, the adjustment is precise and gradual. Made of aluminum, the design has been specially refined to retain zero even after reinstallation.
Features:- Mount for red dot sight, with variable height adjustment
- Aimpoint® Micro Standard type plate

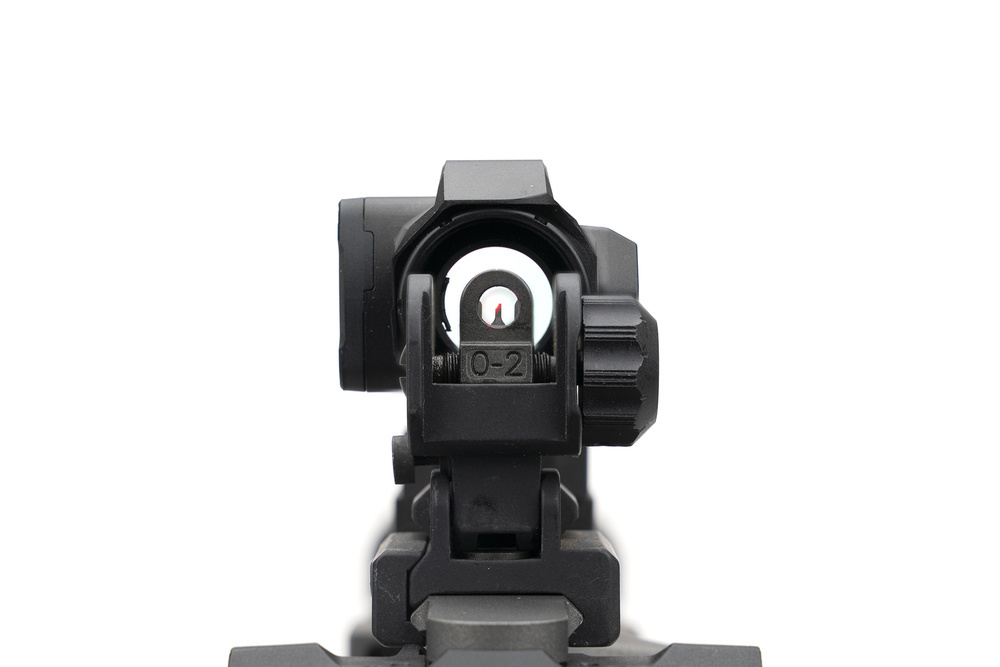

- Height adjustment from 1/3 co-witness to 4.9 cm
- Stable and clear gradual height adjustment with notched rail
- Holds zero even after reassembly

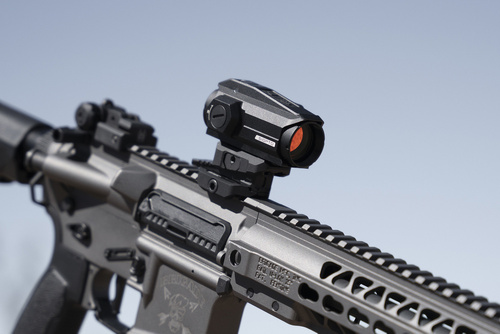

- Mounted on Picatinny rail
- Lightweight and durable construction
- Made of milled 6061-T6 aluminum
- Includes necessary screws and mounting tools
| Technical data | |
|---|---|
| Compatibility of red dot sights |

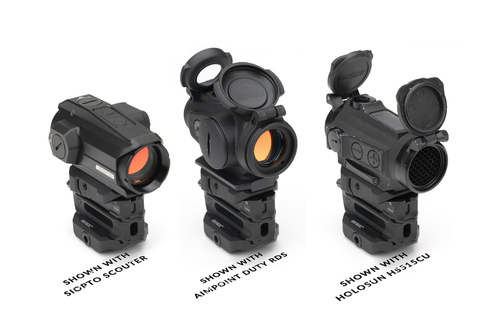

Siopto Scouter Aimpoint Micro T-1/T-2/H-1/H-2, Comp M5, Duty RDS Actus Core-1 1x20, Core-2 1x20 Athlon Optics Midas TSR 2 Blaser RD 17 Burris Fastfire RD Di Optical SP 1 Holosun 403, 503, 515, 530 Kahles Helia RD-C Makdot S 1x20 Minox RV 1 Primary Arms SLX Advanced Rotary Knob, SLX Md-20 Sightmark Element Mini Solar, Wolverine 1x23 CSR, Wolverine 1.28 FSR Sig Sauer Romeo 4, Romeo 5, Romeo MSR Vector Optics Centurion 1x20, Maverick 1x22, Maverick 1x22 Gen II, Scrapper 1x22, Scrapper 1x25 Vortex Crossfire, Sparc AR, Sparc Solar Zerotech Thrive |
| Mounting | Picatinny |
| Dimensions of the rail base | Length: 60.95 mm Width: 20.00 mm Height: 12.88 mm Weight: 48.2 g |
| Slider dimensions | Length: 47.97 mm Width: 29.00 mm Height: 15.96 mm Weight: 31.2 g |
| 4.9 cm riser dimensions |
Length: 58.25 mm Width: 20.40 mm Height: 15.41 mm Weight: 20 g |
| Mounting plate dimensions |
Length: 53.03 mm Width: 32.89 mm Height: 11.58 mm Weight: 31.2 g |
| Material | Aluminum 6061-T6 |
| Weight of the set | 187 g |
| Color | Black |

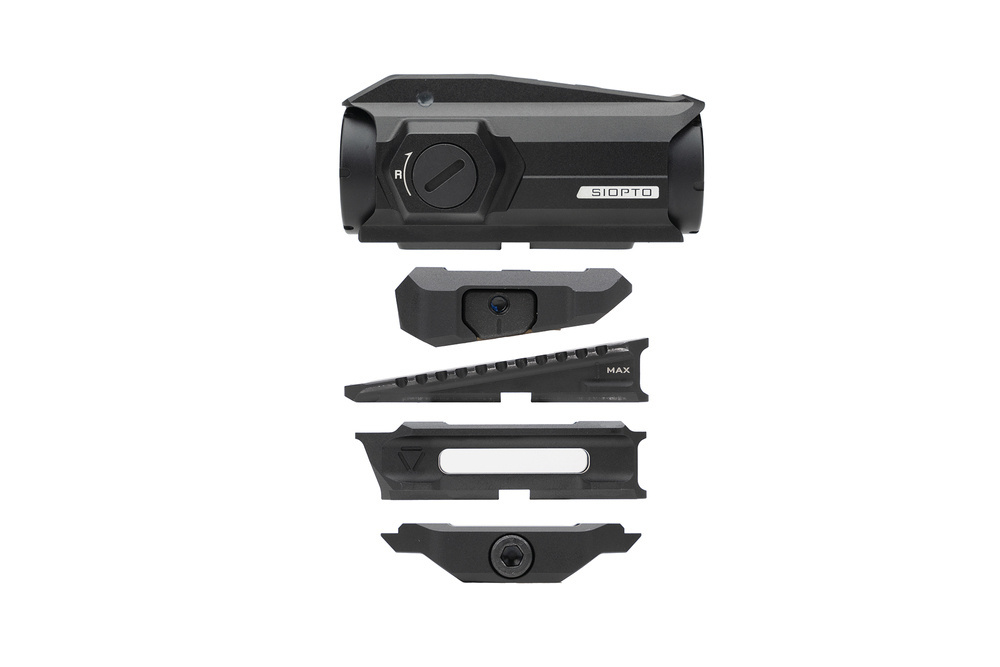

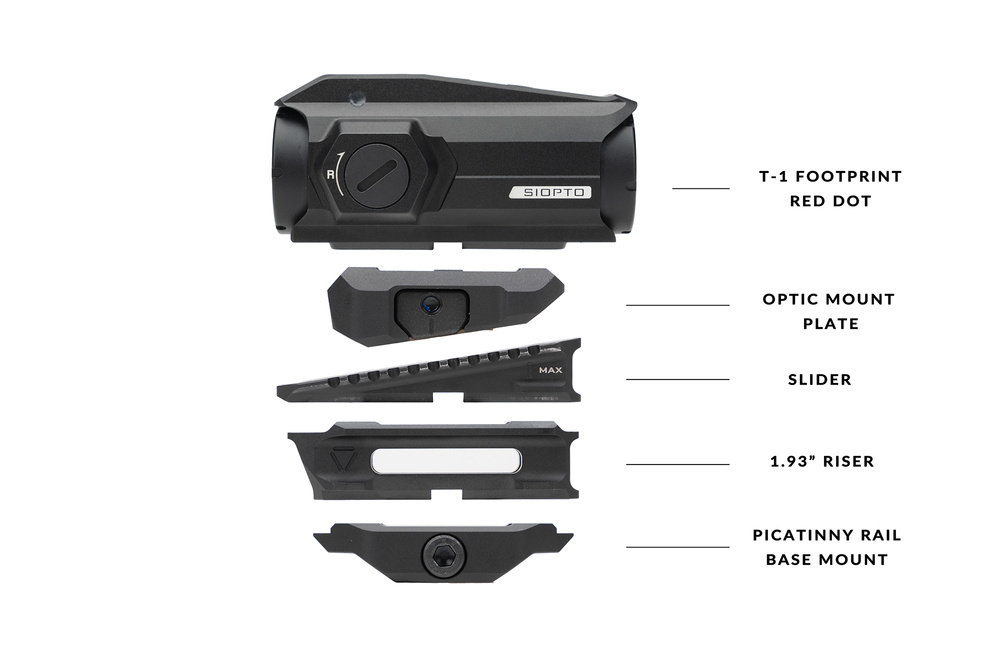

Kit components:
- 1x Picatinny rail base
- 1x mounting plate
- 1x slider
- 1x elevation 4.9 cm / 1.93"
- 4x screw for Aimpoint® Micro Standard M3 x 4 mm T10 rounded
- 4x screw for slider M3 x 6 mm T10 rounded
- 4x screw for elevation M3 x 20 mm T10 rounded
- 1x Torx T10 wrench
- 1x Torx T25 wrench
- 1x allen wrench M4
- 1x Loctite® Threadlocker Blue 243® thread adhesive
